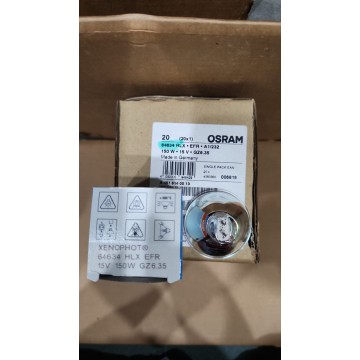

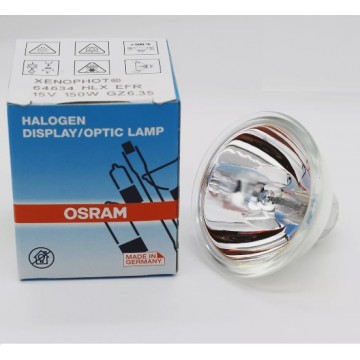

Osram 64634 HLX EFR 15V 150W GZ6.35
The OSRAM 64634 HLX EFR is a high-performance halogen lamp designed for demanding applications requiring intense, focused illumination. Utilizing XENOPHOT™ HLX technology, this lamp replaces the traditional krypton gas with xenon, resulting in a luminous flux up to 10% higher with the same power consumption. Its dichroic reflector ensures efficient light output, making it ideal for use in microscopy, laboratories, UV curing, fiber illumination, and surgical and dental overhead lighting.
Specifications
| Attribute | Details |
|---|---|
| Model | 64634 HLX EFR |
| Lamp Type | Halogen with dichroic reflector |
| Nominal Wattage | 150 W |
| Nominal Voltage | 15.0 V |
| Base | GZ6.35 (Bi-pin) |
| Focal Length | 32.0 mm |
| Diameter | 51.0 mm |
| Length | 42.0 mm |
| Coating | Dichroic |
| Weight | 27.6 g |
| Burning Position | p90/p15 |
| Cooling | Forced |
| Minimum Enclosure Diameter | 51.0 mm |
| Nominal Lifetime | 50 hours |
| Dimmable | Yes |
| Energy Efficiency Class | B (EEI) |
| ANSI Code | EFR |
| LIF Code | A1/232 |
| Applications | Microscopy, laboratory analysis, UV curing, fiber illumination, surgical and dental overhead lighting |
